yes workingOSRAM XBO 1200W/HPN OFR Xenon Cinema Lamp for NEC, 45,000 lm, DC 22V 57A, LCL 144mm, 3000h

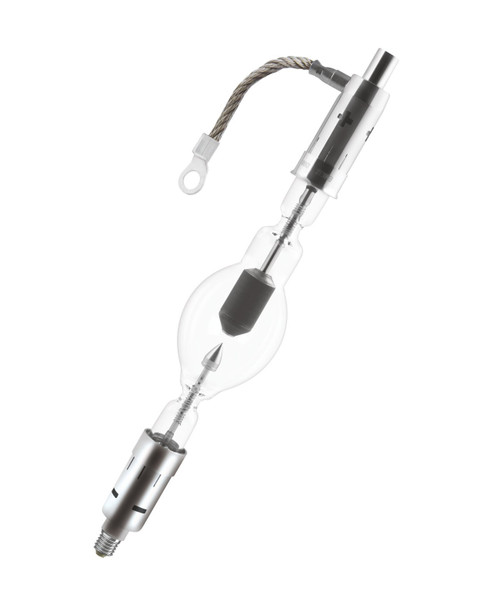

OSRAM XBO 1200W/HPN OFR Xenon Cinema Lamp (69079)

45,000 lm • 1200W DC xenon short-arc lamp for select NEC Digital Cinema projectors

Bright 45,000 lm output with long 3000-hour life and NEC-compatible geometry (LCL 144mm).

Bright Output
45,000 lm nominal luminous flux for strong screen illumination.

Stable DC Operation
1200W, 22V, 57A nominal with 41–63A current control range.

Correct Optical Geometry
LCL 144.0 mm and 3.5 mm electrode gap (cold) for proper positioning.

Long Service Life
3000 hr nominal life with 3000 warranty hours (service warranty lifetime 3500 hr).

Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).

Specifications
Brand / Family	OSRAM XBO
Product Number (Americas)	69079
Product Name (Americas)	XBO 1200W/HPN 1/CS 1/SKU
Global Order Reference	XBO 1200 W/HPN OFR
Nominal Wattage	1200 W
Nominal Voltage	22 V
Nominal Current	57 A
Current Control Range	41–63 A
Type of Current	DC
Nominal Luminous Flux	45,000 lm
Light Center Length (LCL)	144.0 mm
Electrode Gap (cold)	3.5 mm
Base (Anode)	SFaX30-9.5
Base (Cathode)	SFa30-20
Diameter	46.5 mm (1.594 in)
Length	345.0 mm
Length w/ base excl. pins/connection	308.0 mm
Cable/Wire Length (input side)	235 mm
Connector Present	Yes
Product Weight	543 g
Burning Position	s15/p15
Cooling	Forced
Max Ambient Temp (pinch point)	230 °C
Nominal Lifetime	3000 hr
Warranty Hours	3000 hrs
Service Warranty Lifetime	3500 hr
REACh Primary Article Identifier	4008321741547 \| 4062172030496
