yes workingOSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp for NEC, DC 41V 170A, LCL 171.5mm, 400h Life

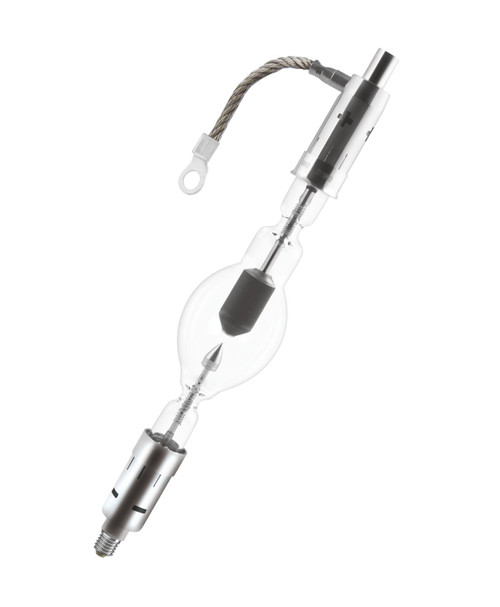

OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp (55227)

7000W xenon short-arc lamp for select NEC digital cinema projectors

7.0kW DC xenon lamp with LCL 171.5mm for compatible NEC cinema projection systems.

High-Power 7kW Output
Designed for demanding cinema projection environments and large screens.

Stable Electrical Ratings
41V, 170A nominal with 135–175A current control range.

Correct Optical Geometry
LCL 171.5 mm and 7.5 mm electrode gap (cold) support proper alignment.

Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).

Fitment Details Included
78 mm diameter, 428 mm length, connector present, 235 mm input cable.

Specifications
Brand / Family	OSRAM XBO
Product Number (Americas)	55227
Product Name (Americas)	XBO 7000W/HPN 1/CS 1/SKU
Global Order Reference	XBO 7000 W/HPN OFR
Nominal Wattage	7000 W
Nominal Voltage	41 V
Nominal Current	170 A
Current Control Range	135–175 A
Light Center Length (LCL)	171.5 mm
Electrode Gap (cold)	7.5 mm
Base (Anode)	SFaX30-9.5
Base (Cathode)	SFa30-20
Diameter	78.0 mm
Length	428.0 mm
Length w/ base excl. pins/connection	389.0 mm
Cable/Wire Length (input side)	235 mm
Connector Present	Yes
Product Weight	1023 g
Burning Position	s15/p15
Cooling	Forced
Max Ambient Temp (pinch point)	230 °C
Nominal Lifetime	400 hr
Warranty Hours	300 hrs
Service Warranty Lifetime	500 hr
REACh Primary Article Identifier	4062172031691
