Osram XBO 3000 W/HS XL OFR 3000W Xenon Short Arc Lamp for Cinema Projectors, FollowSpots, & Searchlights - 69479

Osram XBO 3000 W/HS XL OFR 3000W Xenon Short Arc Lamp for Cinema Projectors, FollowSpots, & Searchlights - 69479

MSRP: $1,299.99
$849.99
(You save $450.00 )
(No reviews yet) Write a Review
SKU:
XBO 3000 W/HS XL OFR
UPC:
000470989577
Condition:
New
Adding to cart… The item has been added

OSRAM XBO 3000 W/HS XL OFR Xenon Short-Arc Lamp (69479)

For cinema projectors, followspots & searchlights – 3000W, 90,000 cd/cm², XL life

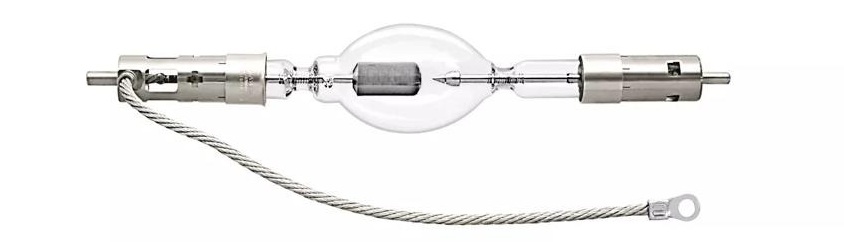

OSRAM XBO 3000 W/HS XL OFR 69479 xenon short-arc lamp

Genuine OSRAM XBO 3000W XL xenon short-arc lamp engineered for high luminance, stable DC operation, and forced-cooled cinema/searchlight systems.

High Luminance Output
90,000 cd/cm² luminance for intense screen brightness and long-throw performance.
XL (Xtreme Life) Platform
Built for demanding professional use with a 2,200-hour nominal/warranty life rating.
Stable DC Electrical Profile
3000W rated 29V / 100A nominal with a 70–110A current control range.
Precise Optical Geometry
145.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
Forced Cooling + Correct Orientation
Requires forced cooling and s30/p30 burning position for safe, correct operation.
Specifications
Brand / Family OSRAM XBO
Model XBO 3000 W/HS XL OFR
Product Number (Americas) 69479
Global Order Reference XBO 3000 W/HS XL OFR
Nominal Wattage 3000 W
Nominal Voltage 29 V
Nominal Current 100 A
Current Control Range 70–110 A
Luminance 90,000 cd/cm²
Light Center Length (LCL) 145.0 mm
Electrode Gap (cold) 6.0 mm
Base (Anode) SFaX30-9.5
Base (Cathode) SFa30-7.9
Connector Yes
Burning Position s30/p30
Cooling Forced
Max Ambient Temp (Pinch Point) 230 °C
Nominal Lifetime 2,200 hr
Warranty Hours 2,200 hrs
Dimensions Ø 60.0 mm (2.362 in) x L 342.0 mm (302.0 mm excl. base pins/connection)
Product Weight 585.00 g
REACh Primary Article Identifier 4008321330031 / 4062172152341 / 4062172030311

Works With (Examples – Verify Model/Spec)

  • NEC Digital Cinema NC1600C
  • NEC Digital Cinema NC2000C
  • NEC Digital Cinema NC2500S
  • NEC Digital Cinema NC3200S
  • NEC Digital Cinema NC3240S (4kW)
  • NEC Digital Cinema NC3240S (7kW)
  • Lycian 1293 X3K
  • Space Cannon Illumination 3.0kW
  • Syncrolite Entertainment Technology SX3K-2

Replaces / Cross-Reference

  • ASL XM3000HS/R
  • LTI LTIX-3000W-HS
  • Ushio UXL-30SC (5001079)
  • Christie Digital CXL-30SC
  • Yumex YXL-30SC
  • Superior Quartz SX30002

What's in the Box

  • OSRAM XBO 3000 W/HS XL OFR Xenon Short-Arc Lamp (69479)
  • Protective packaging
  • Documentation (as included by manufacturer)

Why Choose OSRAM XBO 3000W/HS XL OFR?

  • High luminance (90,000 cd/cm²) for cinema projection, followspots, and searchlights.
  • 3000W DC operation with 70–110A current control range for stable performance.
  • 145.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
  • Forced cooling and s30/p30 burning position requirements for correct operation.
  • XL platform with 2,200-hour nominal/warranty life rating.

Product Gallery

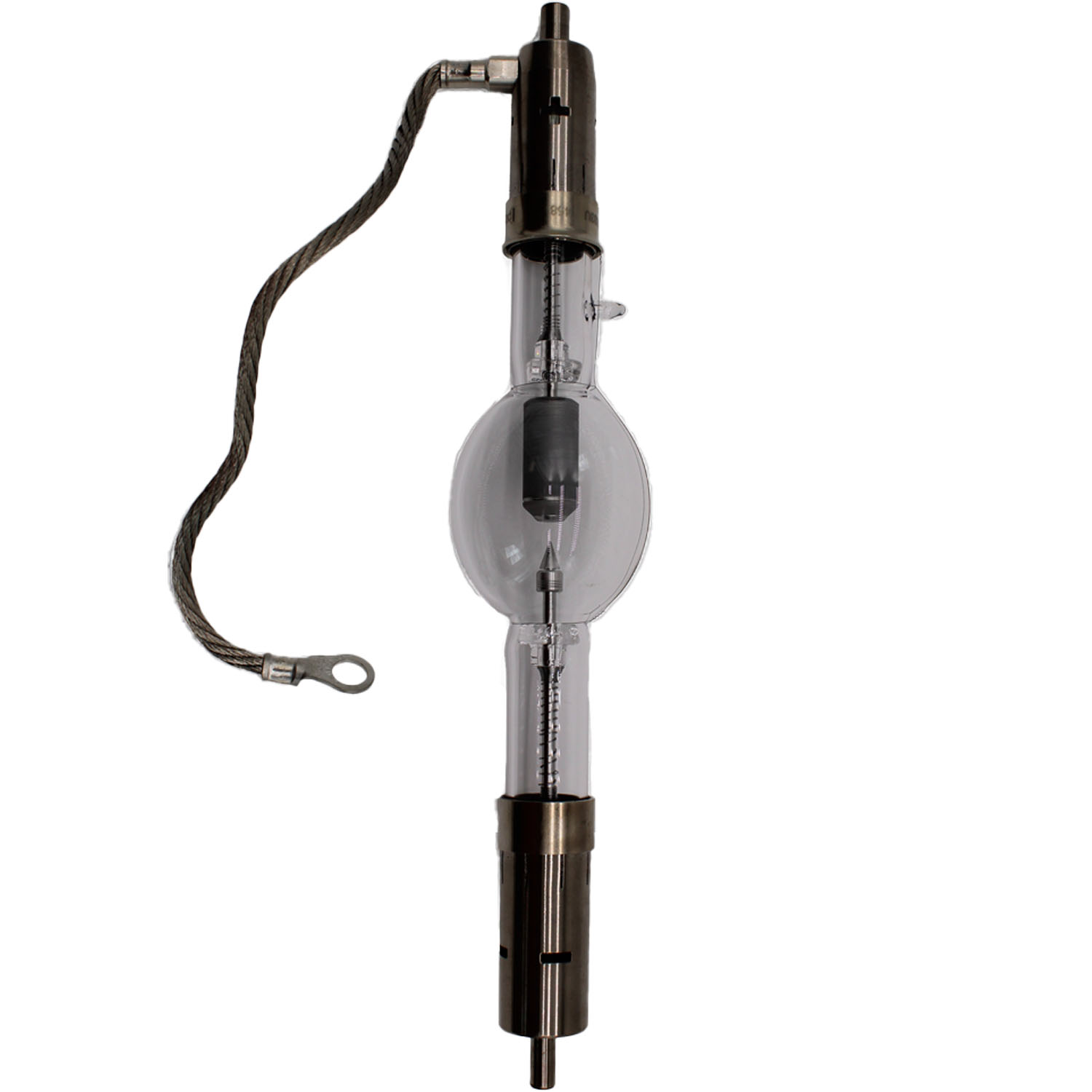

OSRAM XBO 3000 W/HS XL OFR 69479 main view
OSRAM XBO 3000 W/HS XL OFR 69479 alternate view
OSRAM XBO 3000 W/HS XL OFR 69479 connector
OSRAM XBO 3000 W/HS XL OFR 69479 close-up
OSRAM XBO 3000 W/HS XL OFR 69479 installed
