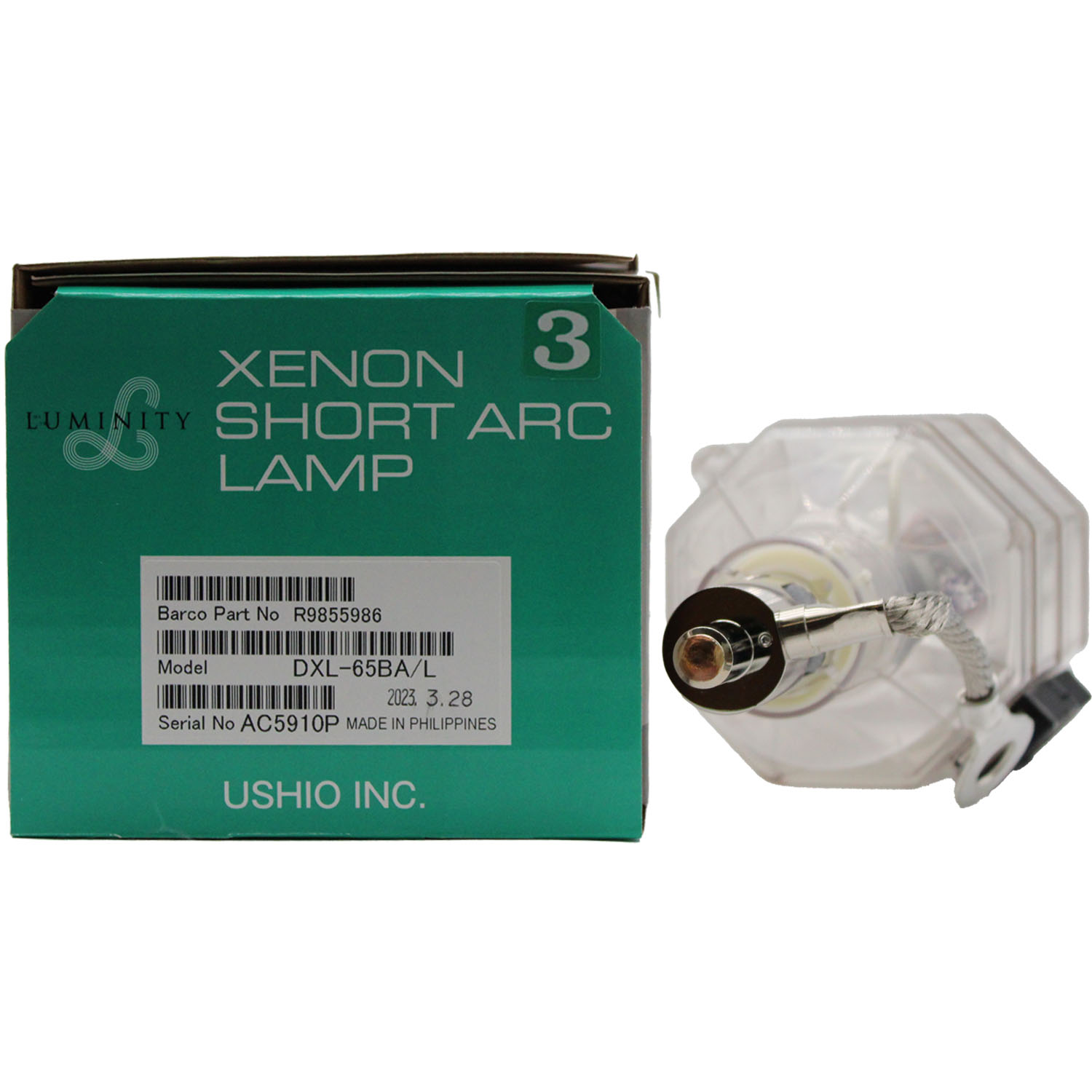

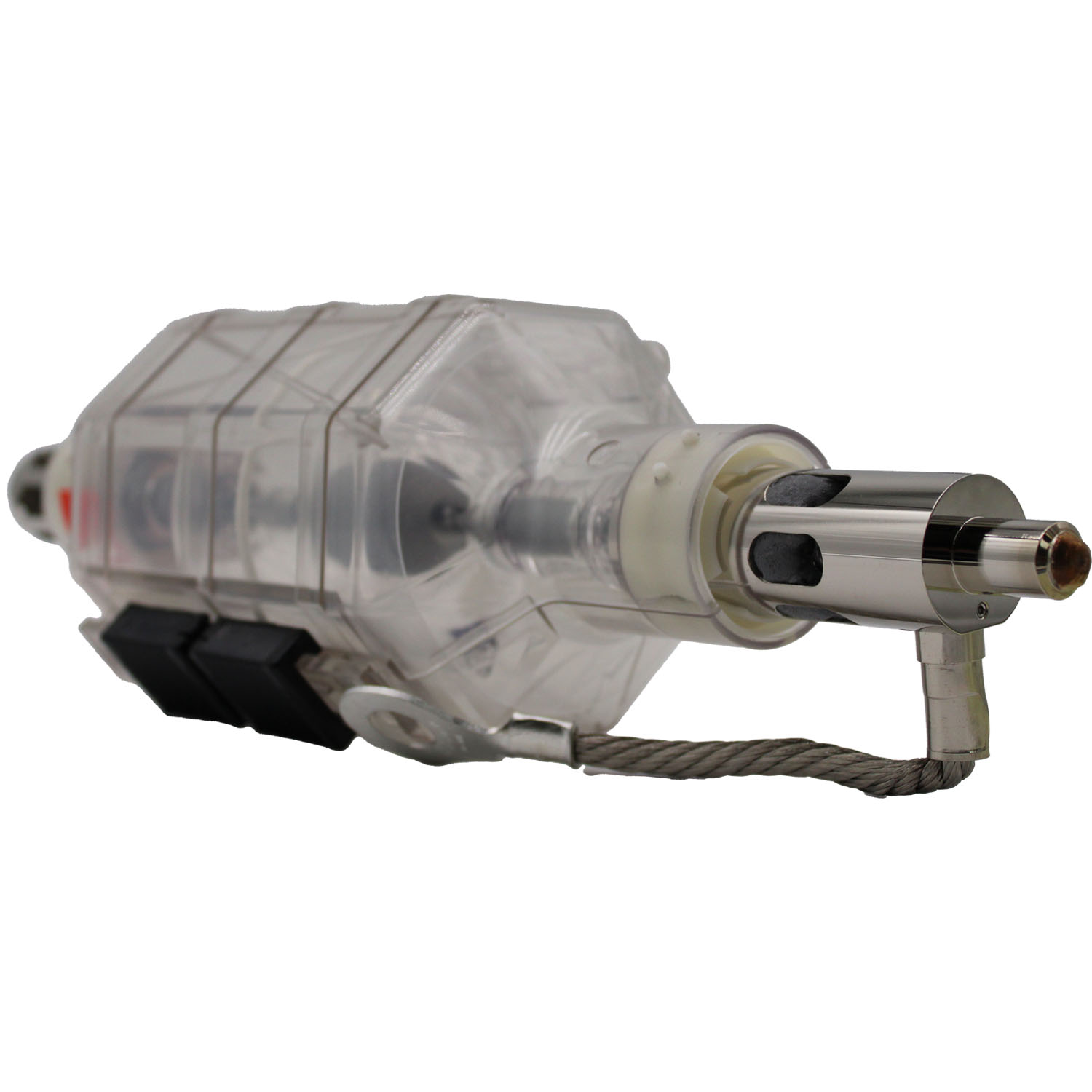

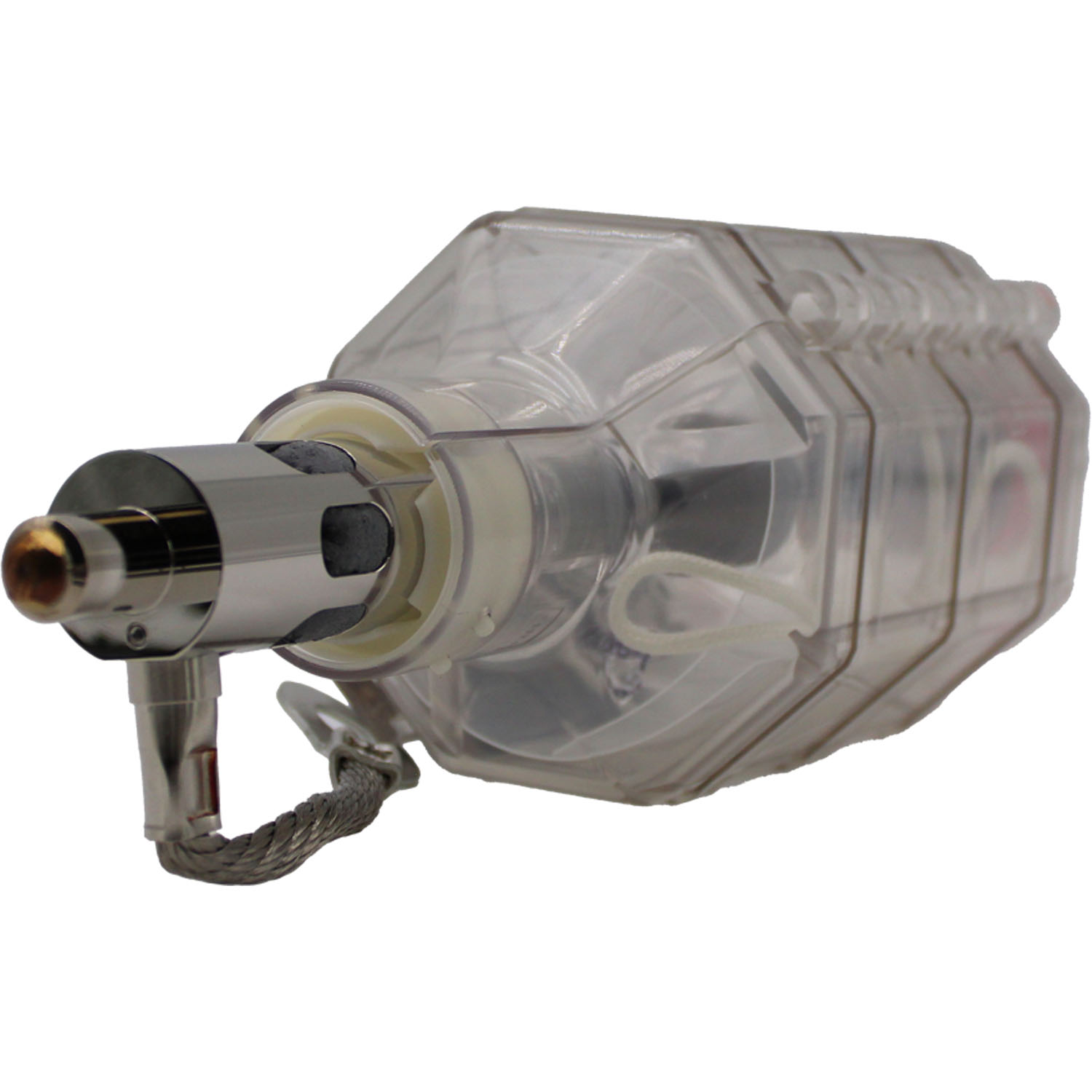

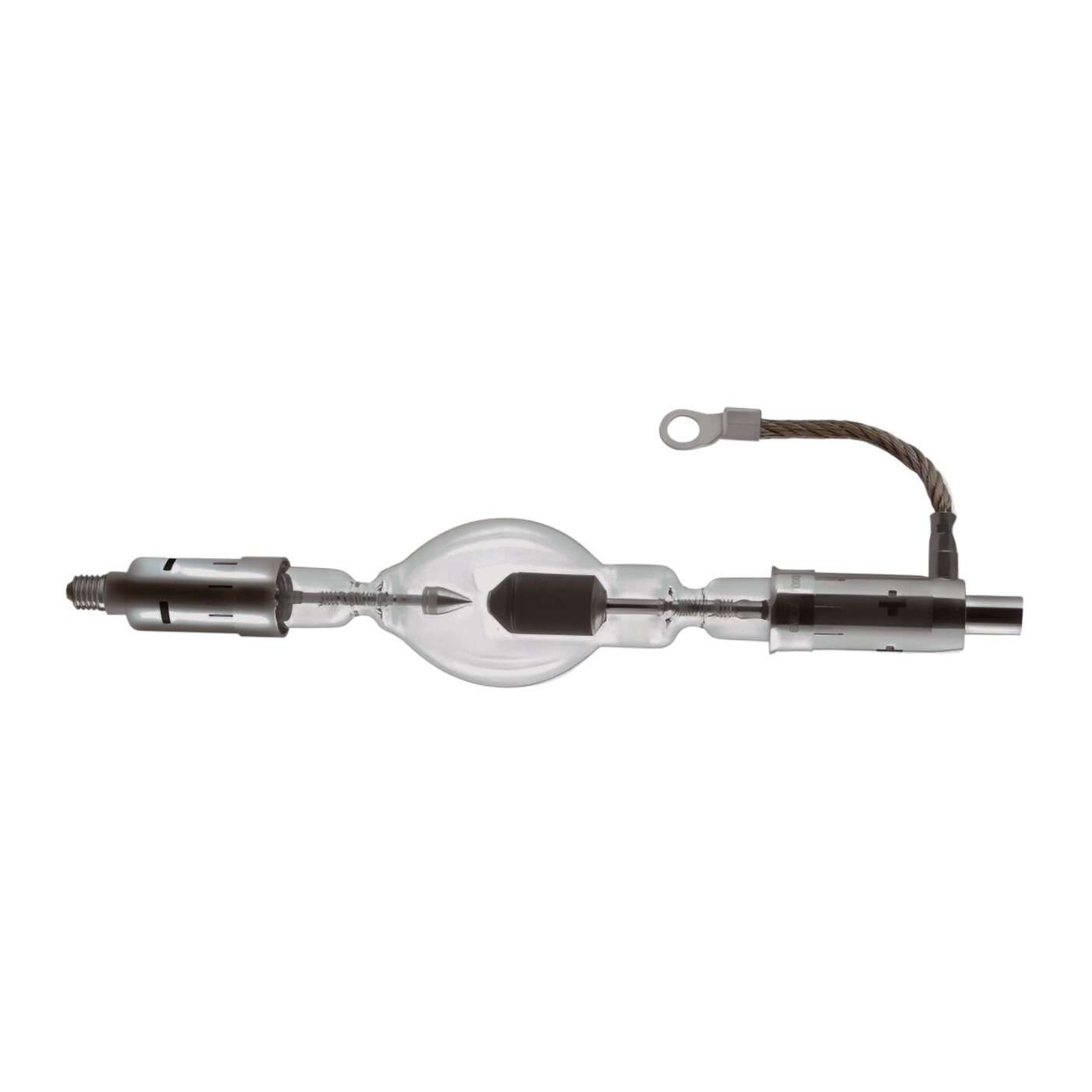

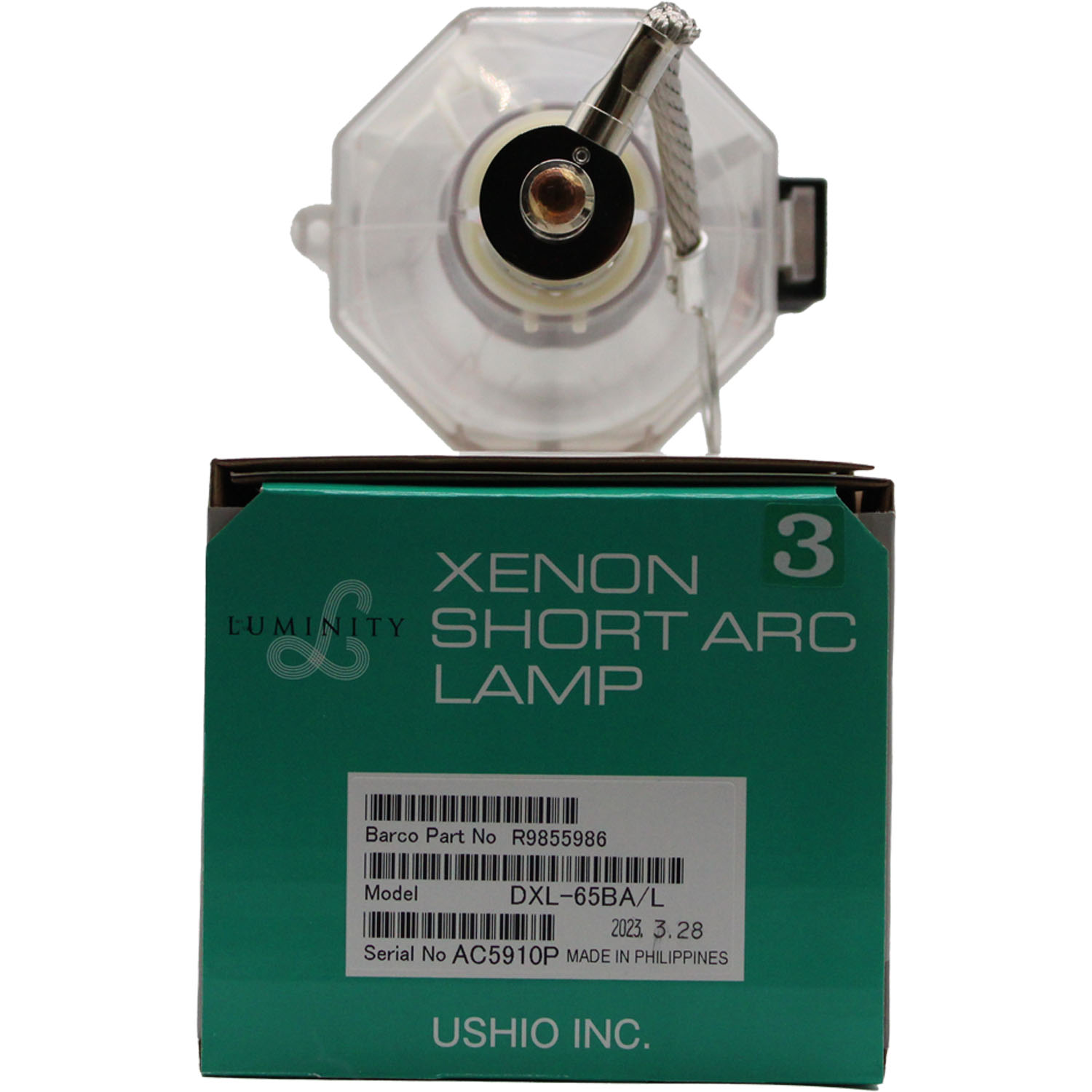

yes workingUshio DXL-65BA/L 6500W Xenon L Series Cinema Lamp, 900 Hr, Fits Barco DP2K/DP4K-32B

Ushio DXL‑65BA/L Xenon L Series Cinema Lamp (5003270) – 6500W, 900 Hour Warranty – For Barco DP2K/DP4K‑32B

6500W xenon L series performance with a 900-hour warranty rating—engineered for Barco 32B digital cinema projection.

6500W Cinema Output
Built for high-brightness projection in demanding cinema environments.

900 Hour Warranty Rating
Supports planned maintenance and dependable replacement scheduling.

Electrical Specs for Fitment
Rated 39.4V / 165A with a 114–184A operating current range for compatible systems.

Precision Dimensions
375.5mm length, 158.5mm LCL, and 8mm arc gap help support correct installation.

Made for Barco 32B Platforms
Compatible with Barco DP2K‑32B and DP4K‑32B projector models.

Specifications
Lamp Type	Xenon (Digital Cinema) – L Series
Model / Part Number	DXL‑65BA/L / 5003270
Input Power	6500 W
Voltage	39.4 V
Current	165 A
Operating Range (Current)	114–184 A
Lamp Length	375.5 mm
LCL	158.5 mm
Cold Arc Gap	8 mm
Bulb Diameter	80 mm
Cable Length	156 mm
Pin Thread	M14 × 1.5
Pin Length	10.5 mm
Pin Diameter	14 mm
Warranty Hours	900 hours

For use with the following Barco projector models:

Why Choose the Ushio DXL‑65BA/L?

6500W xenon output designed for Barco 32B cinema projection.
900-hour warranty rating supports planned replacement cycles.
Rated 39.4V / 165A with a 114–184A operating current range for compatible systems.
Key fitment dimensions: 375.5mm length, 158.5mm LCL, 8mm cold arc gap, 80mm bulb diameter, 156mm cable length.
Compatible with Barco DP2K‑32B and DP4K‑32B.
