Creality CR-Scan Otter 3D Scanner 0.02mm Accuracy, 4-Lens Stereo, 20fps, Full-Color, Mac/Windows/iOS/Android
Creality
MSRP:
$959.00
$799.99
(You save
$159.01
)
- SKU:
- Creality-Scan-Otter
- UPC:
- 000470981427
- Condition:
- New

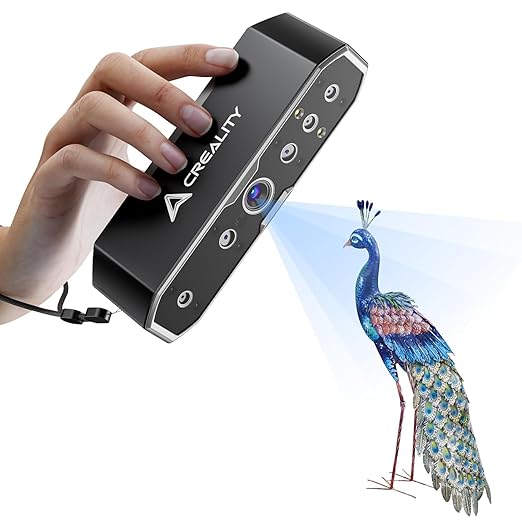

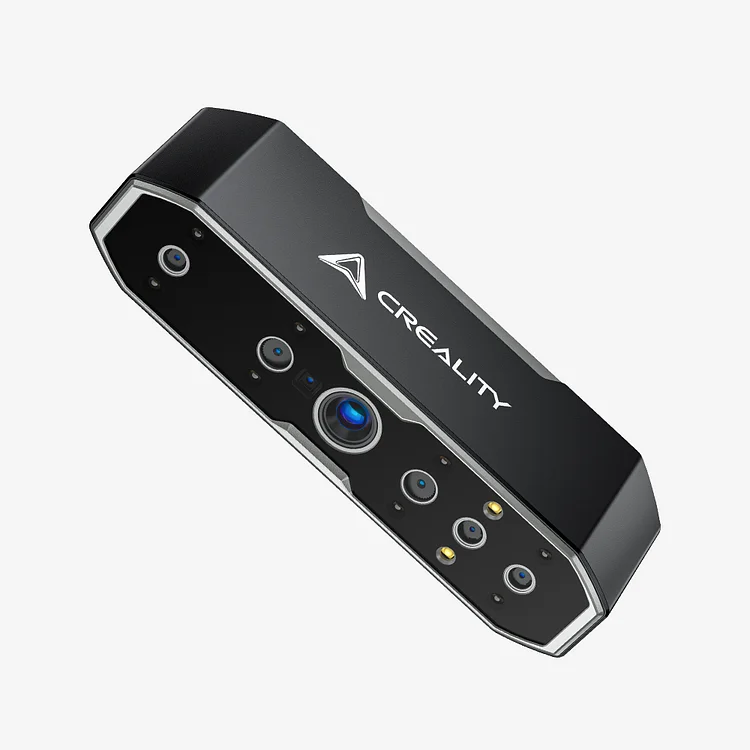

Creality CR-Scan Otter Handheld 3D Scanner
Up to 0.02mm accuracy • Four-lens stereo vision • 24-bit full-color • Up to 20fps • Infrared structured light
Scan small parts or large objects with one handheld scanner—fast, stable, and full-color.
Up to 0.02mm Accuracy
Capture fine detail with accuracy up to 0.02mm (at 60mm) and 3D resolution of 0.05–2mm.
Capture fine detail with accuracy up to 0.02mm (at 60mm) and 3D resolution of 0.05–2mm.

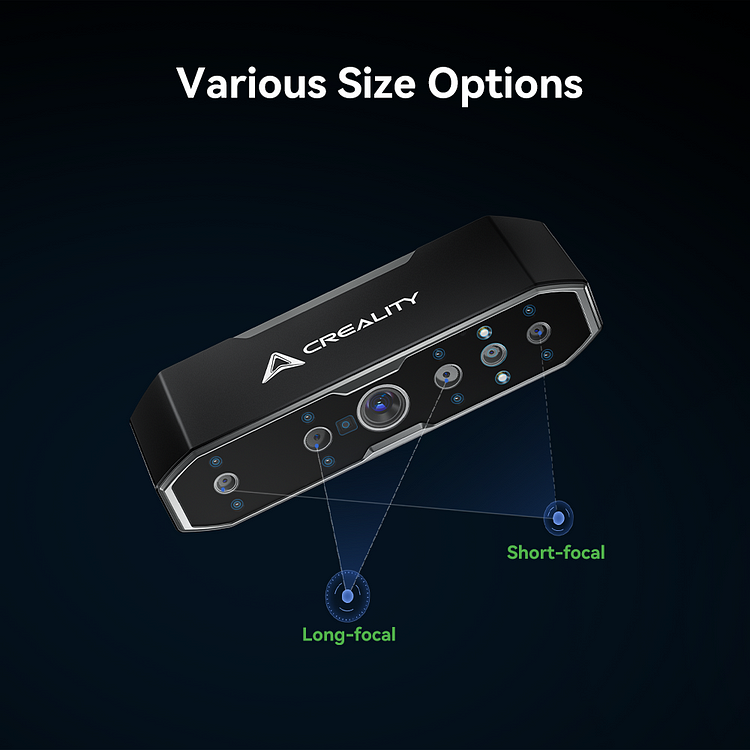

Innovative Four-Lens Stereo Vision
Two sets of dual lenses help handle both small and large scans with richer detail and broader coverage.
Two sets of dual lenses help handle both small and large scans with richer detail and broader coverage.
Anti-Shake + IMU
Designed for smoother handheld scanning with reduced tracking loss and fast backtracking.
Designed for smoother handheld scanning with reduced tracking loss and fast backtracking.
24-Bit Full-Color Scanning
Full-color RGB capture with color mapping for realistic textures and color reproduction.
Full-color RGB capture with color mapping for realistic textures and color reproduction.

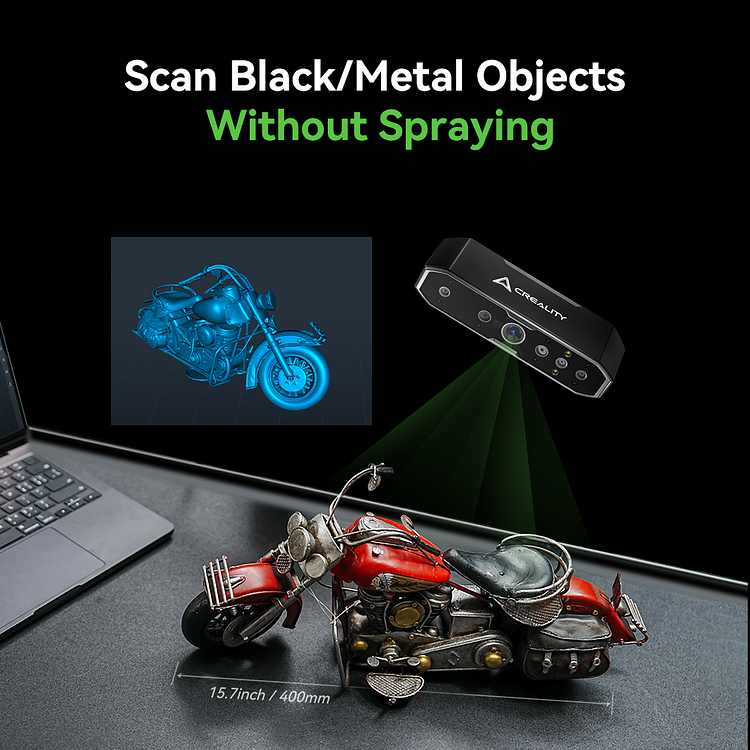

Scan Black/Metal Objects
Designed to scan black/metal objects without spraying (as listed) for more convenience in real-world use.
Designed to scan black/metal objects without spraying (as listed) for more convenience in real-world use.
| Specifications | |
|---|---|
| Model | CR-Scan Otter |
| Accuracy | Up to 0.02mm @ 60mm |
| 3D Resolution | 0.05–2mm |
| Scanning Speed | Up to 20fps |
| Min. Scan Volume | 10mm × 10mm × 10mm |
| Single Capture Range | Max. 1350 × 840mm @ 1000mm |
| Technology | Infrared structured light |
| Working Distance | 110mm–1000mm |
| Color Mapping | Yes |
| Alignment Modes | Geometry / Marker / Texture |
| Output Formats | OBJ / STL / PLY |
| IMU | Yes |
| Supplemental Light | 2 white LEDs |
| Marker Enhancement | 8 infrared LEDs |
| Laser Safety | Class I (eye safe) |
| System Support | Windows / macOS (wireless accessories required for iPhone iOS/Android) |
| Buttons / Prompts | Touch buttons; audible prompt: Yes |
| Calibration Board | Yes |
| Operating Temp / Humidity | -10°C to 40°C; 0–90% RH |
| Input Power | 5V 3A |
| Data Interface | Type-C / USB 3.0 / USB 2.0 |
| Dimensions / Weight | 165 × 37 × 59mm; 390g |
Compatibility
- Supported systems: Windows, macOS
- iPhone iOS/Android: wireless scanning accessories required (as listed)
- Export formats: OBJ, STL, PLY
Box Contents
- 1 × Creality CR-Scan Otter 3D Scanner
- Calibration board (as listed)
(If you want the exact Jaspertronics “What’s included” list, paste it here and I’ll match it 1:1.)
Feature Highlights
- Four-lens stereo vision system for small + large object scanning
- Up to 0.02mm accuracy (at 60mm) and up to 20fps scanning speed
- Infrared structured light with Class I eye-safe laser safety
- 24-bit full-color scanning with color mapping (RGB camera)
- Alignment modes: Geometry / Marker / Texture
- Scan black/metal objects without spraying (as listed)
- Exports OBJ / STL / PLY for 3D printing and design workflows
Note: QUICKSURFACE software purchases are non-refundable and non-exchangeable (as noted).
