yes workingOSRAM XBO 4000W/DHP OFR Xenon Cinema Lamp for Barco, 170000 lm, DC 34V 123A, LCL 123mm

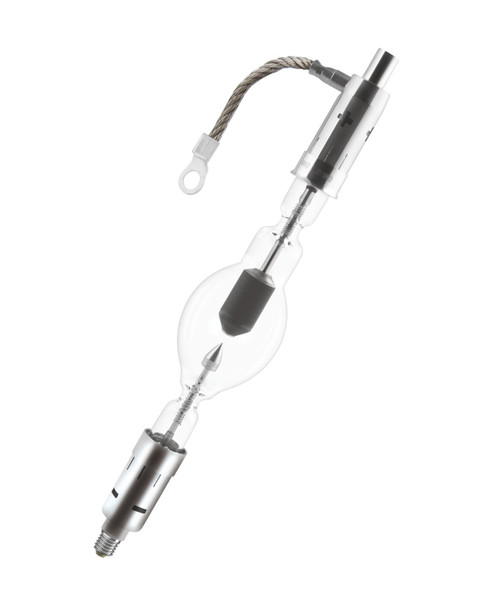

OSRAM XBO 4000W/DHP OFR Xenon Cinema Lamp (69481)

4000W DC xenon short-arc lamp for select Barco digital cinema projectors

High-output 4kW XBO lamp delivering 170,000 lm with 123mm LCL for proper cinema projector alignment.

High Brightness Output
170,000 lm nominal luminous flux for demanding cinema projection.

Stable DC Electrical Profile
4000W, 34V, 123A nominal with 91–130A current control range.

Correct Optical Geometry
123.0 mm LCL and 6.0 mm electrode gap (cold) for proper positioning.

Booth-Ready Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).

Fitment Details Included
SFaX27-14x80 / SFc27-16/55 bases, 60 mm diameter, connector present.

Specifications
Brand / Family	OSRAM XBO
Product Number (Americas)	69481
Product Name (Americas)	XBO 4000W/DHP 1/CS 1/SKU
Global Order Reference	XBO 4000 W/DHP OFR
Nominal Wattage	4000 W
Nominal Voltage	34 V
Nominal Current	123 A
Current Control Range	91–130 A
Type of Current	DC
Nominal Luminous Flux	170,000 lm
Light Center Length (LCL)	123.0 mm
Electrode Gap (cold)	6.0 mm
Base (Anode)	SFaX27-14x80
Base (Cathode)	SFc27-16/55
Diameter	60.0 mm (2.165 in)
Length	345.0 mm
Length w/ base excl. pins/connection	295.0 mm
Cable/Wire Length (input side)	130 mm
Connector Present	Yes
Product Weight	670 g
Burning Position	s15/p15
Cooling	Forced
Max Ambient Temp (pinch point)	230 °C
Nominal Lifetime	1100 hr
Warranty Hours	1100 hrs
Service Warranty Lifetime	1400 hr
REACh Primary Article Identifier	10046135694810 \| 4052899287792 \| 4052899195790 \| 4008321546272 \| 4062172030397 \| 4052899096080 \| 4052899091825 \| 4052899317208
