yes workingOSRAM XBO 1600W/DTS OFR Xenon Short-Arc Cinema Lamp for Christie Projectors

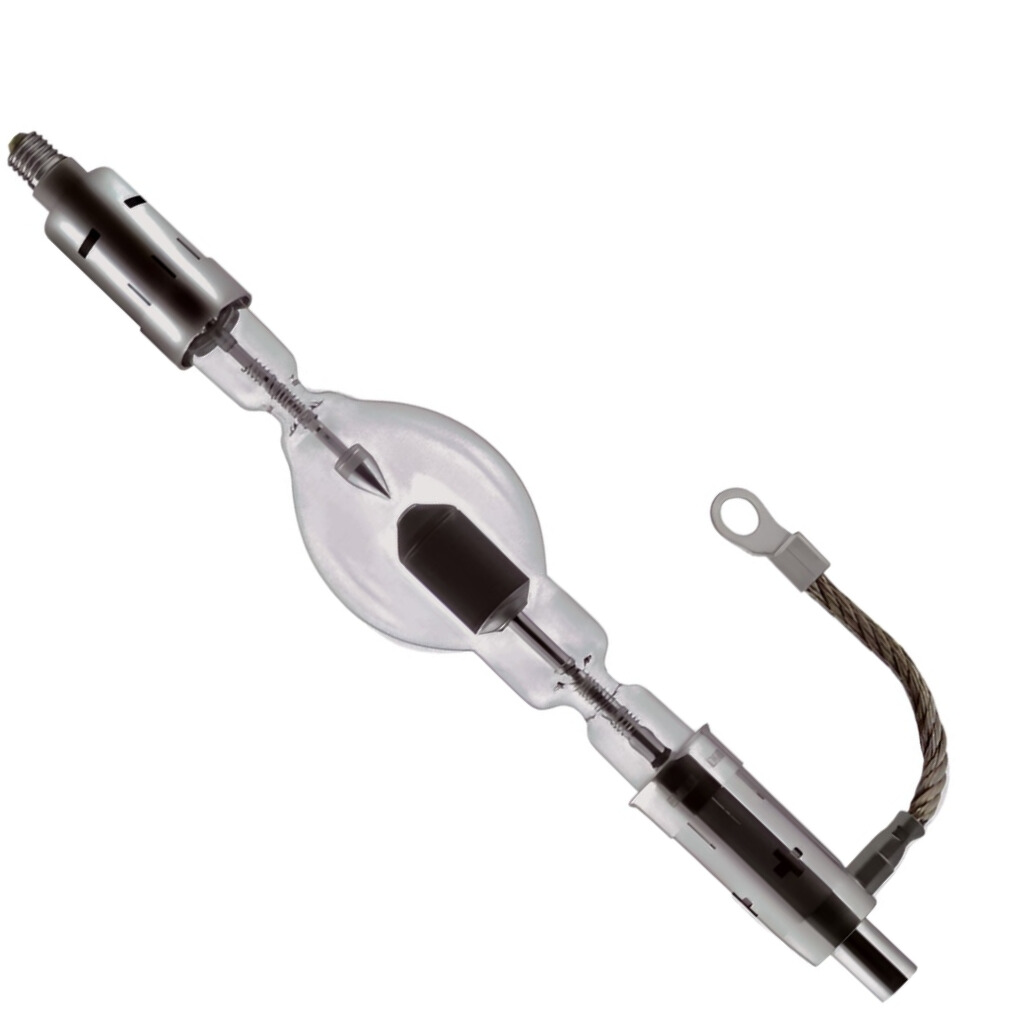

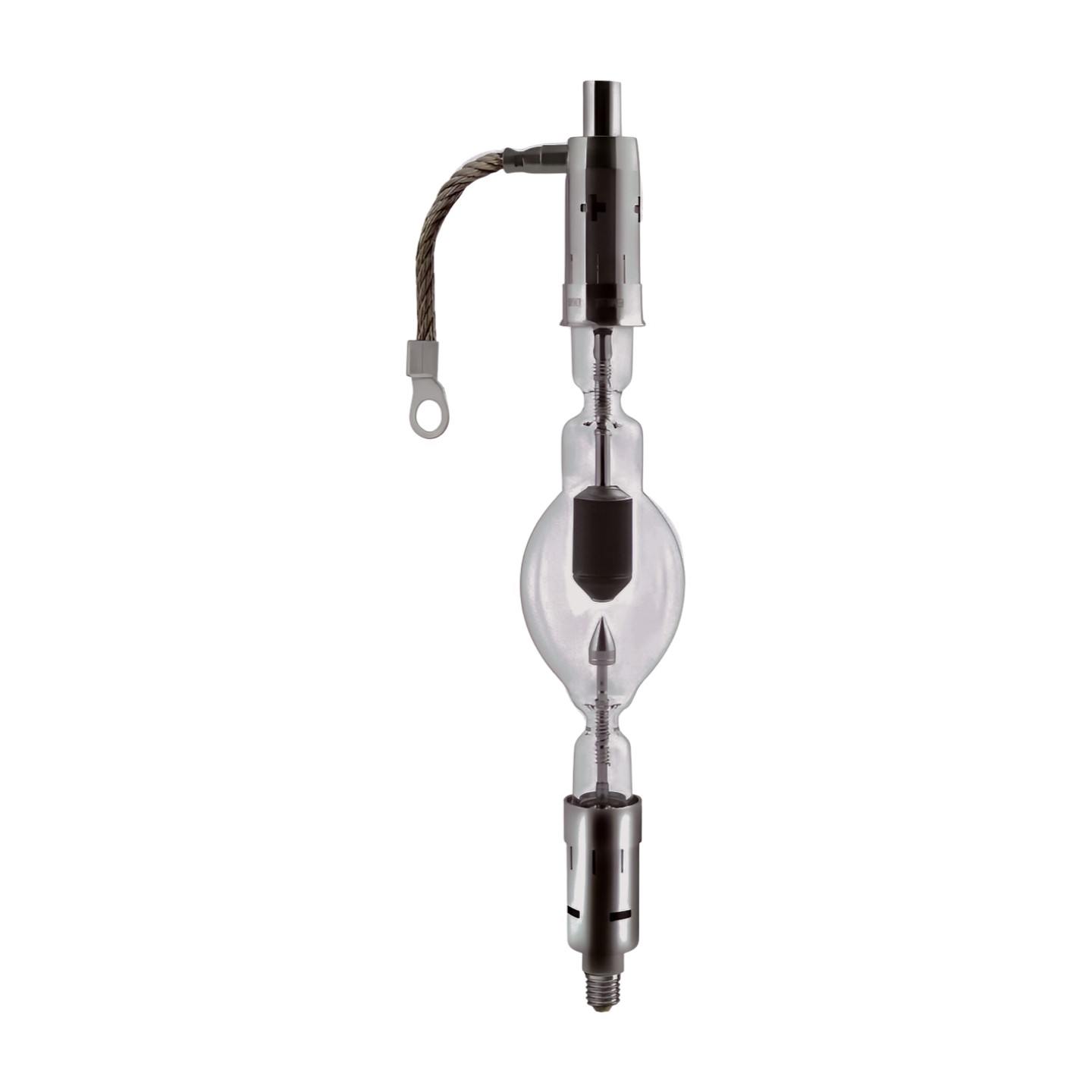

OSRAM XBO 1600W/DTS OFR Xenon Short-Arc Cinema Lamp (68892)

Genuine OSRAM cinema projection lamp for select Christie Digital projectors

1600W OSRAM XBO xenon short-arc lamp built for stable DC operation, forced cooling, and long service life in Christie cinema projection systems.

Genuine OSRAM XBO Cinema Lamp
OSRAM XBO 1600W/DTS OFR (68892) for professional digital cinema projection.

Stable DC Electrical Profile
1600W rated 24V / 67A nominal with a 50–80A current control range.

Precise Optical Geometry
100.5mm LCL and 3.7mm electrode gap (cold) for intended cinema optical alignment.

Built for Cinema Operation
Forced cooling required and s15/p15 burning position for proper performance.

Long Service Life
3,250 hr nominal lifetime with 3,250 warranty hours (service warranty lifetime 3,500 hr).

Specifications
Brand	OSRAM
Lamp Type	Xenon Short-Arc (Digital Cinema)
Model	XBO 1600W/DTS OFR
Product Number (Americas)	68892
Global Order Reference	XBO 1600 W/DTS OFR
Nominal Wattage	1600 W
Nominal Voltage	24 V
Nominal Current	67 A
Current Control Range	50–80 A
Type of Current	DC
Light Center Length (LCL)	100.5 mm
Electrode Gap (cold)	3.7 mm
Base (Anode)	Cable
Base (Cathode)	SFc30-20
Connector	Yes
Cooling	Forced
Burning Position	s15/p15
Max Permitted Ambient Temp (Pinch Point)	230 °C
Nominal Lifetime	3,250 hr
Warranty Hours	3,250 hrs
Service Warranty Lifetime	3,500 hr
Dimensions	Ø 46.0 mm x L 245.0 mm (202.0 mm excl. base pins/connection)
Product Weight	370.00 g
REACh Primary Article Identifier	4052899417786

Why Choose Genuine OSRAM XBO?

Genuine OSRAM xenon short-arc lamp engineered for digital cinema projection.
1600W DC operation with 50–80A current control range for stable performance.
100.5mm LCL and 3.7mm electrode gap (cold) for intended optical alignment.
Forced cooling and s15/p15 burning position requirements for safe, correct operation.
3,250 hr nominal lifetime with 3,250 warranty hours.
