yes workingOSRAM XBO 2200W/DHP OFR Xenon Cinema Lamp for Barco, 92,000 lm, DC 24V 85A, LCL 123mm

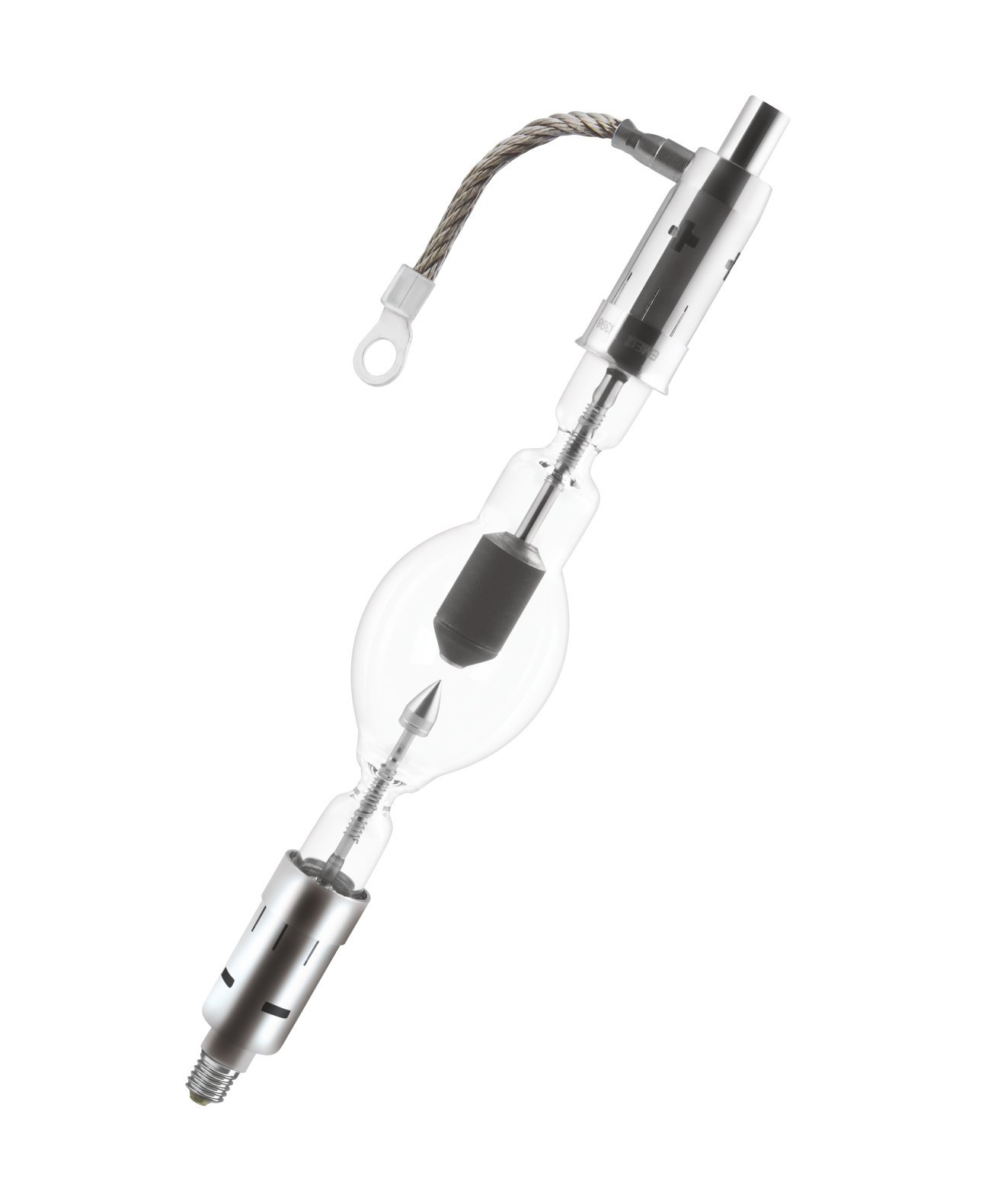

OSRAM XBO 2200W/DHP OFR Xenon Cinema Lamp (67484)

2200W DC xenon short-arc lamp for select Barco digital cinema projectors

High-performance 2200W XENON lamp delivering 92,000 lm nominal luminous flux with stable DC operation for cinema projection.

Bright Cinema Output
92,000 lm nominal luminous flux for strong, consistent projection.

Stable DC Electrical Profile
2200W, 24V, 85A nominal with 68–95A current control range.

Correct Optical Geometry
123.0 mm LCL and 3.7 mm electrode gap (cold) for proper alignment.

Booth-Ready Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).

Long Service Interval
2400 hr nominal lifetime; 1500 warranty hours; 2000 hr service warranty lifetime.

Specifications
Brand / Family	OSRAM XBO
Product Number (Americas)	67484
Global Order Reference	XBO 2200 W/DHP OFR
Lamp Type	XENON
Nominal Wattage	2200 W
Nominal Voltage	24 V
Nominal Current	85 A
Current Control Range	68–95 A
Type of Current	DC
Nominal Luminous Flux	92,000 lm
Light Center Length (LCL)	123.0 mm
Electrode Gap (cold)	3.7 mm
Base (Anode)	SFaX27-14x80
Base (Cathode)	SFc27-16/55
Diameter	52.0 mm (2.047 in)
Length	345.0 mm
Length w/ base excl. pins/connection	295.0 mm
Cable/Wire Length (input side)	130 mm
Connector Present	Yes
Product Weight	534 g
Burning Position	s15/p15
Cooling	Forced
Max Ambient Temp (pinch point)	230 °C
Nominal Lifetime	2400 hr
Warranty Hours	1500 hrs
Service Warranty Lifetime	2000 hr
