yes workingOSRAM XBO 3000W/DHP XL OFR Xenon Cinema Lamp for Barco, DC 29V 103A, LCL 123mm, 1900h Life

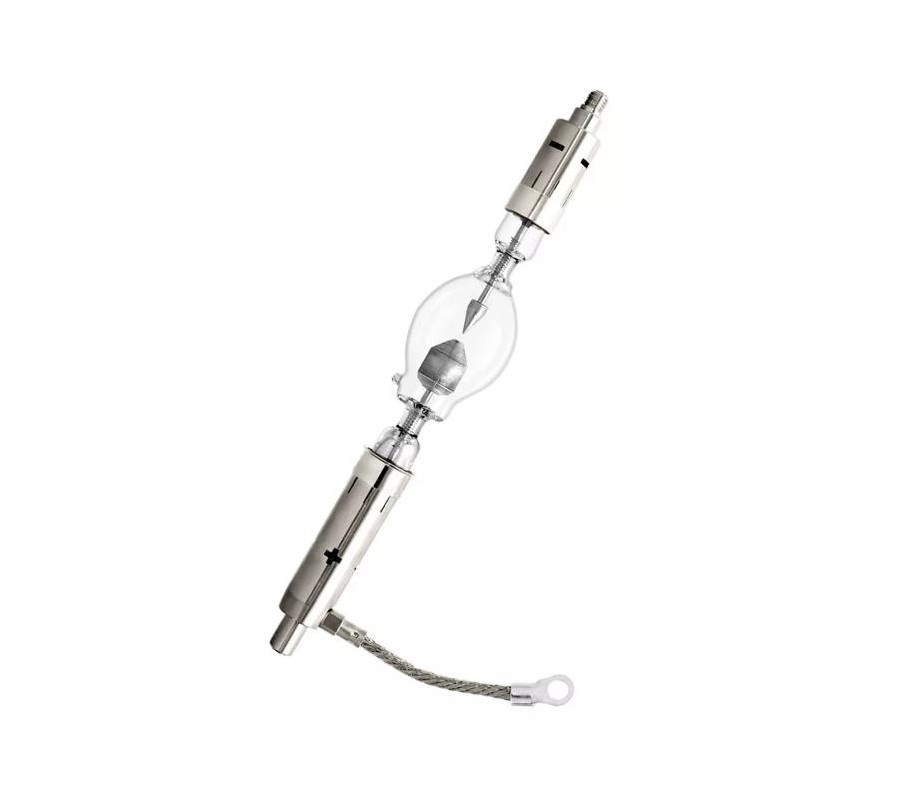

OSRAM XBO 3000W/DHP XL OFR Xenon Cinema Lamp (59938)

3000W xenon short-arc lamp for select Barco digital cinema projectors

3.0kW DC xenon lamp with LCL 123.0mm for compatible Barco cinema projection systems.

3kW Cinema Output
Designed for professional digital cinema projection applications.

Stable Electrical Ratings
29V, 103A nominal with 76–111A current control range.

Correct Optical Geometry
LCL 123.0 mm and 5.0 mm electrode gap (cold) support proper alignment.

Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).

Fitment Details Included
60 mm diameter, 345 mm length, connector present, 130 mm input cable.

Specifications
Brand / Family	OSRAM XBO
Product Number (Americas)	59938
Product Name (Americas)	XBO 3000W/DHP XL 1/CS 1/SKU
Global Order Reference	XBO 3000 W/DHP XL OFR
Nominal Wattage	3000 W
Nominal Voltage	29 V
Nominal Current	103 A
Current Control Range	76–111 A
Light Center Length (LCL)	123.0 mm
Electrode Gap (cold)	5.0 mm
Base (Anode)	SFaX27-14x80
Base (Cathode)	SFc27-16/55
Diameter	60.0 mm
Length	345.0 mm
Length w/ base excl. pins/connection	295.0 mm
Cable/Wire Length (input side)	130 mm
Connector Present	Yes
Product Weight	623 g
Burning Position	s15/p15
Cooling	Forced
Max Ambient Temp (pinch point)	230 °C
Nominal Lifetime	1900 hr
Warranty Hours	2200 hrs
Service Warranty Lifetime	2400 hr
REACh Primary Article Identifier	4062172092401
