yes working25 Pack of Ubiquity 2 LED T8 Direct Wire Bypass Lamps 48in 12.5W 5000K 1800lm CRI85 120-277V

Description

Ubiquity 2 LED T8 Direct Wire Bypass Lamp 48in; 12.5W; 5000K; 1800lm; 120-277V; 3000681 - 25 Pack

Ubiquity 2 LED T8 Direct Wire bypass lamp 48 inch 12.5W 5000K ordering code 3000681

Direct wire LED T8 retrofit lamp; single end or double end wiring; no ballast or driver needed; shatterproof frosted glass for clean glare reduced light

Direct Wire Bypass Retrofit
Eliminates external ballasts and LED drivers for a simpler long term lighting upgrade

Single End or Double End Wiring
Supports one end or two end wiring to reduce labor and installation expense

Energy Saving 12.5W
Efficient retrofit option for F32T8 fluorescent lamps in common commercial fixtures

Shatterproof Frosted Glass
Coated glass tube with frosted finish helps reduce glare and supports wide beam coverage

NSF Tested for Food Areas
Tested to NSF standards for use in areas where food is prepared

Long Life and Lower Maintenance
50,000 hour rated life helps reduce relamping and maintenance costs

Specifications
Lamp Type	LED T8 Direct Wire Bypass Lamp
Lamp Description	UBIQUITY 2 LED T8 DW SD; NW40; 48 inch
Bare Lamp Watts	12.5
Voltage	120-277
Color Temperature	5000K
Initial Lumens	1800
CRI	85
Rated Life	50,000 Hours
Beam Angle	240 degree beam angle; 325 degree visible light area
Tube Material	Shatterproof coated glass; frosted
Environmental	UV free; IR free; mercury free; lead free
Warranty	5 year limited warranty
Ordering Code	3000681

Works With

Fluorescent Troffers

Office Lighting

Warehouse Facilities

Retail Lighting

Healthcare Facilities

School Lighting

Industrial Shop Lighting

Fluorescent Low Bay and High Bay

What's in the Box

25 x LED T8 Direct Wire Bypass Lamp; 48 inch; 12.5W; 5000K; Ordering Code 3000681

Why Choose This LED T8 Direct Wire Lamp

Lower install cost: Single end or double end wiring options help reduce labor and simplify retrofits
No ballast needed: Direct wire bypass design eliminates external ballasts and drivers
Cleaner light: Frosted glass helps reduce glare while supporting wide beam coverage
Food prep friendly: Tested to NSF standards for areas where food is prepared
Long life value: 50,000 hour rated life helps reduce maintenance and relamping

Installation Notes

Direct wire installation required; confirm fixture wiring method before installation
For single ended operation; use only non shunted tombstones lampholders that are in good condition
Use appropriate filters and enclosed fixtures where required by application and local code

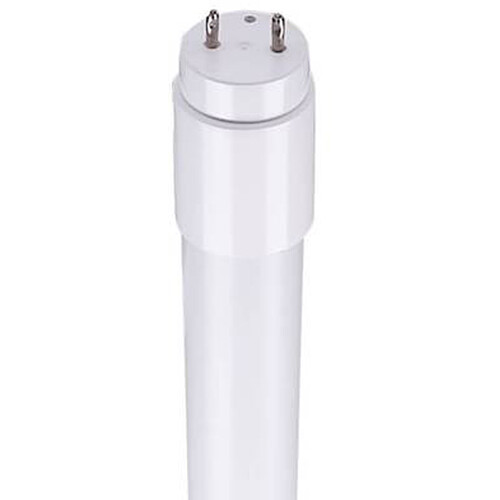

LED T8 direct wire bypass lamp frosted shatterproof glass tube

LED T8 12.5W 5000K retrofit for F32T8 fluorescent lamps

LED T8 direct wire single end or double end wiring installation

LED T8 lamp NSF tested suitable for food preparation areas

Ubiquity 2 LED T8 direct wire bypass lamp ordering code 3000681
